tnebltd.gov.in Apply For Solar Rooftop : TANGEDCO Tamil Nadu

Organisation : Tamil Nadu Generation and Distribution corporation Limited TANGEDCO
Facility Name : Apply For Solar Rooftop PV With CFA
Applicable State/UT : Tamil Nadu
Website : https://www.tnebltd.gov.in/usrp/

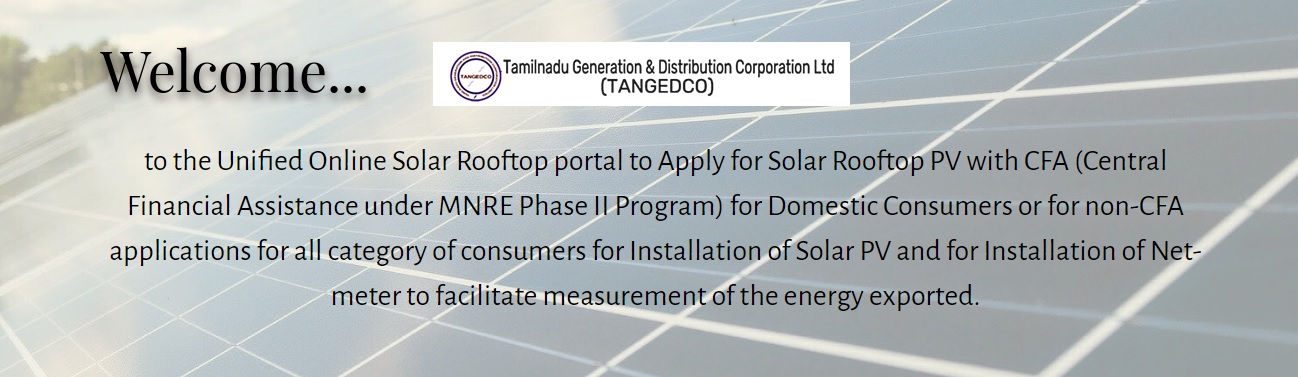

TANGEDCO Unified Online Solar Rooftop Portal

Welcome to the Unified Online Solar Rooftop portal to Apply for Solar Rooftop PV with CFA (Central Financial Assistance under MNRE Phase II Program) for Domestic Consumers or for non-CFA applications for all category of consumers for Installation of Solar PV and for Installation of Net-meter to facilitate measurement of the energy exported.

Related / Similar Facility : OAP Back Office Application Tamil Nadu

How To Apply For Solar Rooftop?

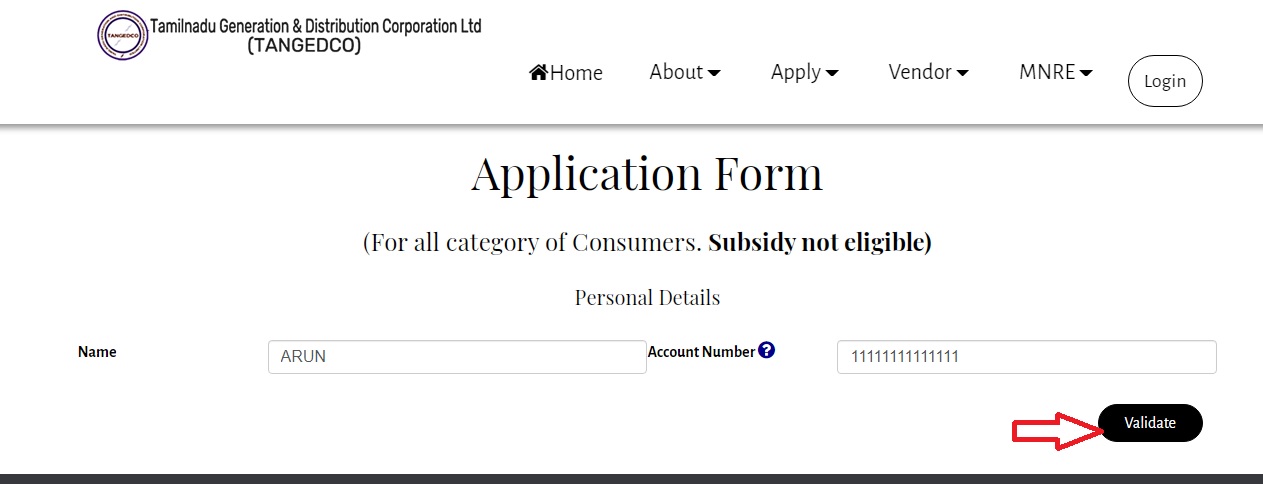

Step-1 : Go to the link https://www.tnebltd.gov.in/usrp/
Step-2 : Enter your Name and Account Number
Step-3 : Click on “Validate” button

Solar Rooftop FAQs

1. What is a Solar Rooftop System?
In a solar rooftop system, the solar panels are installed in the roof of any residential, institutional, social, Government, commercial, industrial buildings etc. .

2. What is a Grid Connected Solar Rooftop System?
In grid connected rooftop or small SPV system, the DC power generated from SPV panel is converted to AC power using Inverter and is fed to the grid either of 440/220 Volt three/ single phase line installed at residential, institution/commercial establishment. These systems generate power during the day time which is utilized by powering captive loads and feed excess power to the grid as long as grid is available. In case, where solar power is not sufficient due to cloud cover etc., the captive loads are served by drawing balance power from the grid.

3. What are the main components?
Solar PV Modules/Solar Panels – The Solar PV modules/Solar Panels convert solar energy to electrical energy. They are available in different technologies such as Mono Crystalline, Poly Crystalline, thin film, CIGS, CdTe, HIT, etc. Poly Crystalline Solar PV panels are most common in use on roof tops.

Inverter – Inverter converts DC output of Solar PV panels into AC power.
Mounting structure – The mounting structure is the support structure that holds the Solar PV panels
Balance of System – These consist of cables, switchboards, junction boxes, meters, structures, earthing system ,circuit breaker, fuses etc.

4. What is net-metering?
The grid connected rooftop system can work on net metering basis wherein the beneficiary pays to the utility on net meter reading i.e. the difference between the import and the export energy, if the imported energy is more than the exported energy. If the exported energy is more than the imported energy the utility will pay to the beneficiary for the net energy exported. This concept is applicable to the solar applications registered before 25.03.2019. Thereafter, net feed-in method of billing is applicable.

5. What is net feed-in scheme?
Under net feed-in scheme for the applications registered on or after 25.03.2019, the surplus/excess energy generated that is unutilized and that flows to the grid at the end of the billing period will be calculated at a tariff fixed by the Hon’ble Commission and credited to the consumer’s account.

The energy that is imported from the grid by the consumer will be calculated at the appropriate retail tariff and the monetary value of imported energy debited from the available credit on account of exported energy in the respective billing period.

Any credit available in the account of the consumer after debiting value of imported energy will be carried over to the next billing period for adjustments against subsequent billing. If the amount to be debited is higher than the credit in a billing period, the consumer will have to pay the difference in charges..

6. How much capacity one can install?
Depending on the sanctioned demand of the existing service, load requirement of the beneficiary and availability of shadow free rooftop area, the beneficiary may decide the capacity upto 150 kW under LT service.

7. How the cost of project will be arrived?
TEDA will finalise the list of empanelled vendors, float tenders and fix the project cost for the installation of Rooftop Solar domestic services throughout the State.

8. How can a beneficiary select a vendor?
The consumer is having the option to choose the vendors among the list of empanelled vendors finalised by TEDA. TEDA will issue work order to the vendor. .

9. Who will do the feasibility analysis?
The concerned Executive Engineer/O&M will complete the feasibility analysis of distribution transformer capacity based on the verification by the Assistant Executive Engineer/O&M concerned. After receipt of feasibility report from Executive Engineer/O&M the same has to be informed to TEDA for issue of work order to the vendor to install the plant as per the technical standards..

10. Request for grid connectivity/ Net meter
On installation of the PV plants by the vendor, the vendor/consumer will send the readiness report to TANGEDCO. After completing the inspection by AEE/O&M for installations of capacity of 10 KW and by CEIG for installations of capacity of above 10 KW , on receipt of inspection report, bi-directional meter will be installed by TANGEDCO for providing grid connectivity.

11. How the subsidy is disbursed?
On registering the applications in TANGEDCO’s Unified Solar Rooftop Portal(USRP), the consumer has to choose the vendor from the empanelled vendor’s list . After the issue of work order by TEDA, the vendor will install RTS. The consumer has to make payment to the vendor after deducting the eligible CFA amount. The vendor can claim the CFA from Tamil Nadu Energy Development Agency(TEDA), the implementing agency. TANGEDCO will release the CFA amount to TEDA for onward disbursement to the vendor.

12. How much area is required for a 1 kW rooftop Solar PV system?
A 1 kW rooftop system generally requires 10 sq. meters of shadow-free area. Actual sizing, however, depends on local factors of solar radiation and weather conditions, efficiency of solar module, shape of the roof etc.

13. What are the advantages of Grid Connected Rooftop Solar (RTS) System?
** Cheaper and environment friendly electricity.
** Excess energy can be fed into the grid with tariff as determined by the State Electricity Regulatory Commissions .
** Electricity generation occurs at consumption center thus, saving transmission and distribution losses
** Lower payback period.
** 25 years guaranteed lifespan of the solar photovoltaic panels
** Highly modular
** 25 years guaranteed lifespan of the solar photovoltaic panels
** Subsidy is available from the Central Government for domestic category (residential) of LT consumers.
** Quick installation
